(left)One of Iterations

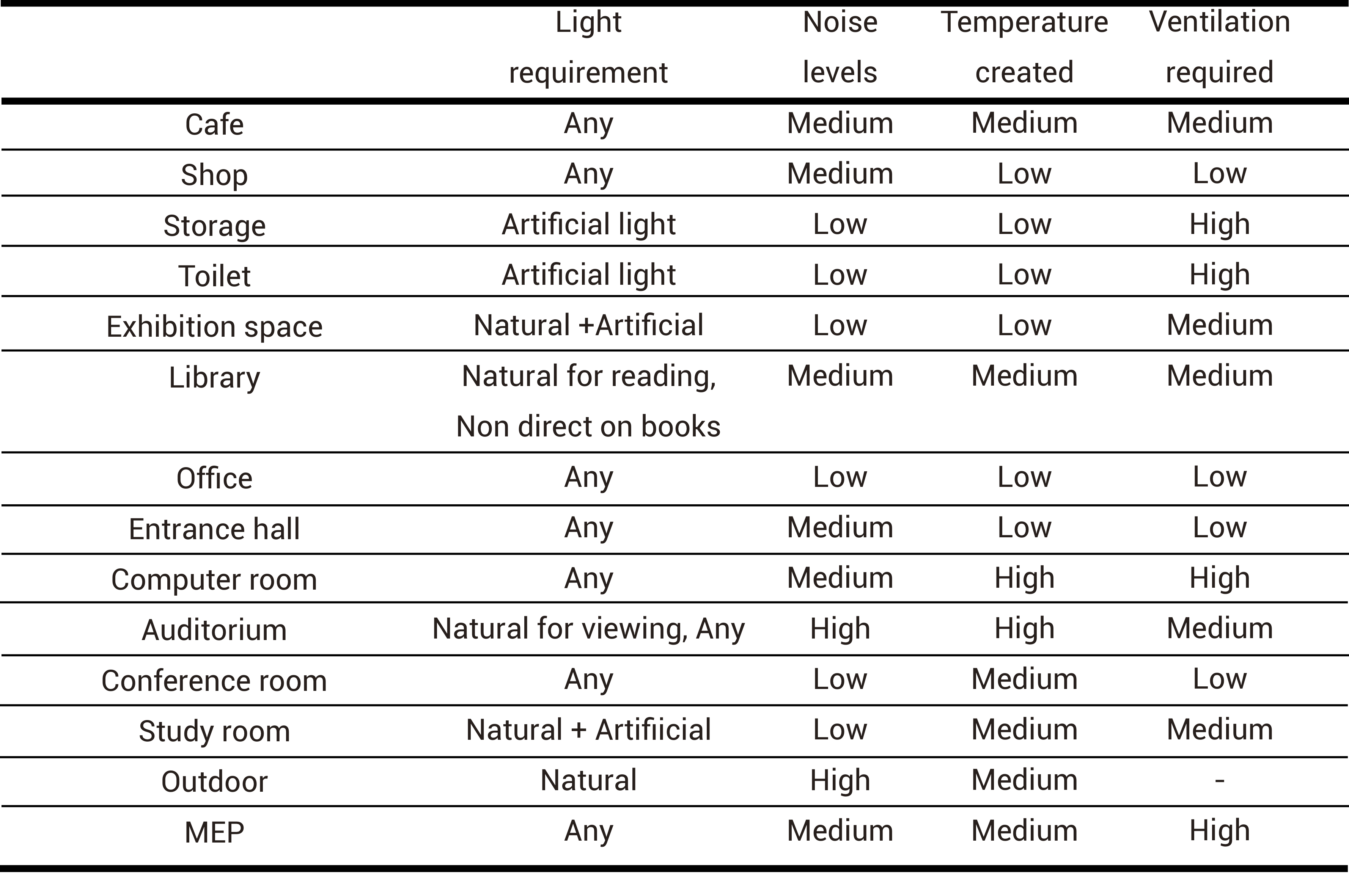

(Above) Technical Requirement Table
(Above) Technical Requirement Table
Design Criteria
Technical Strategy

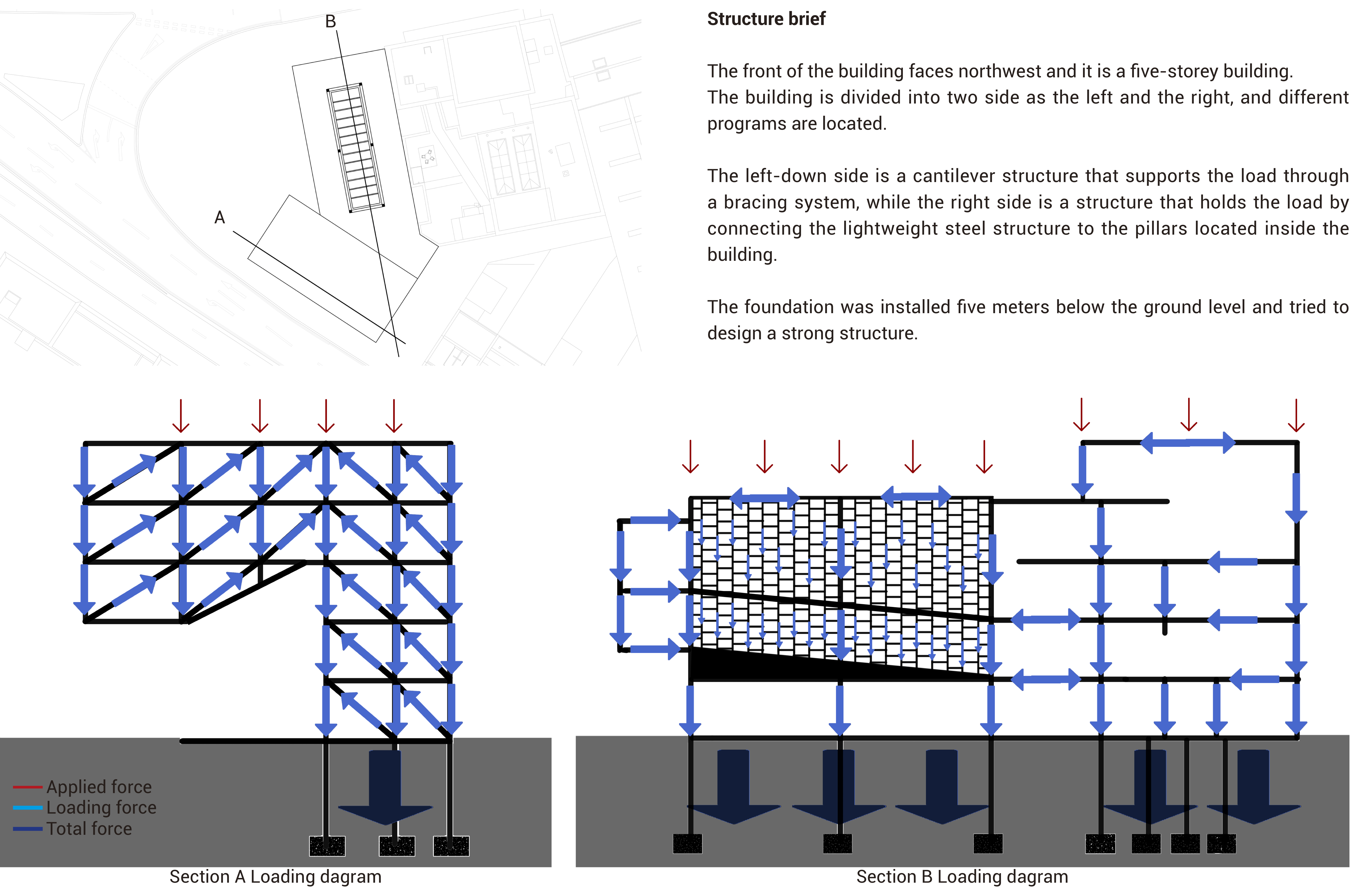

Structure : Force Load

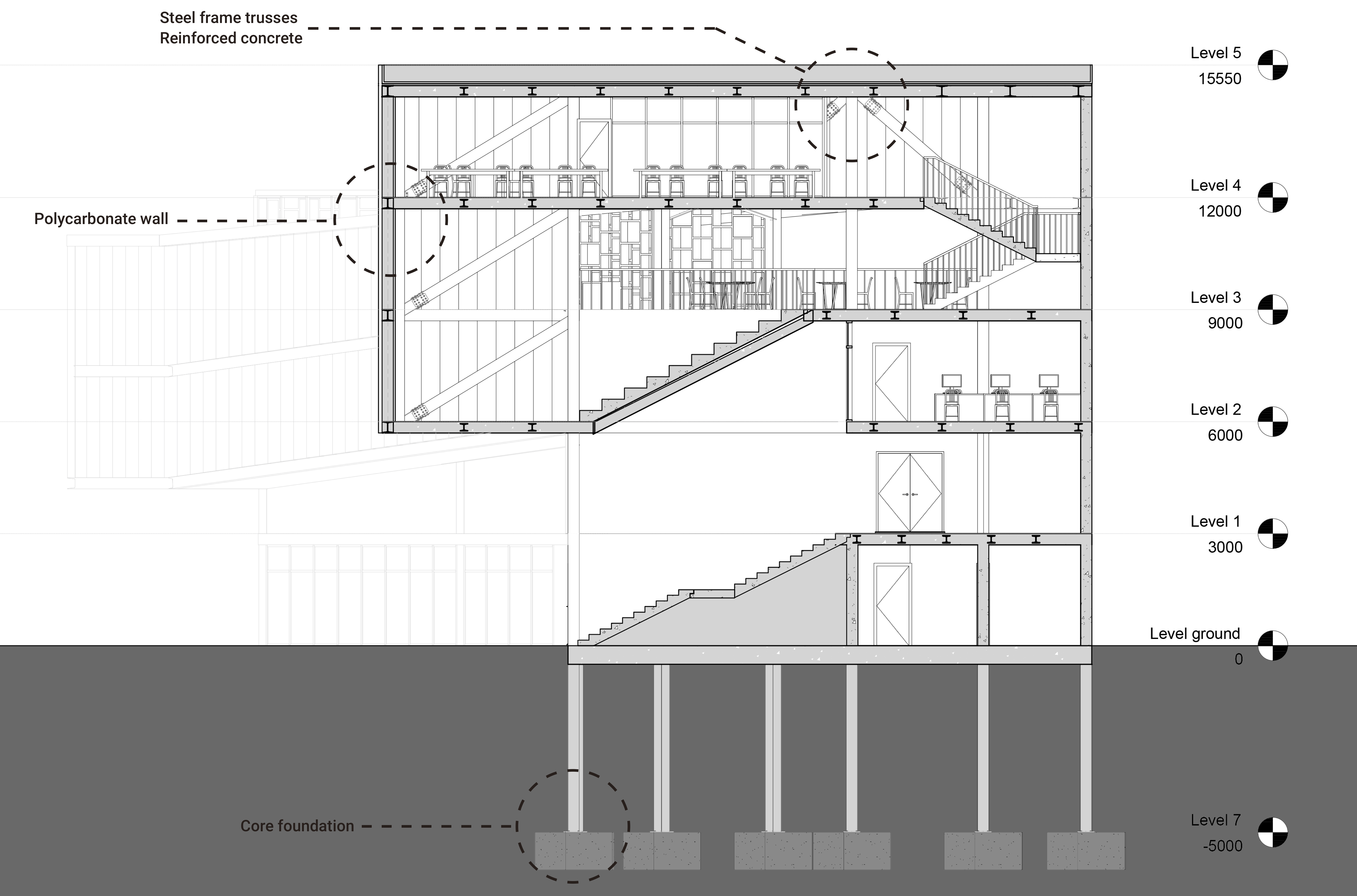

Structure : 1:100 section
Structure : Steel Frame and Trusses
Environmental

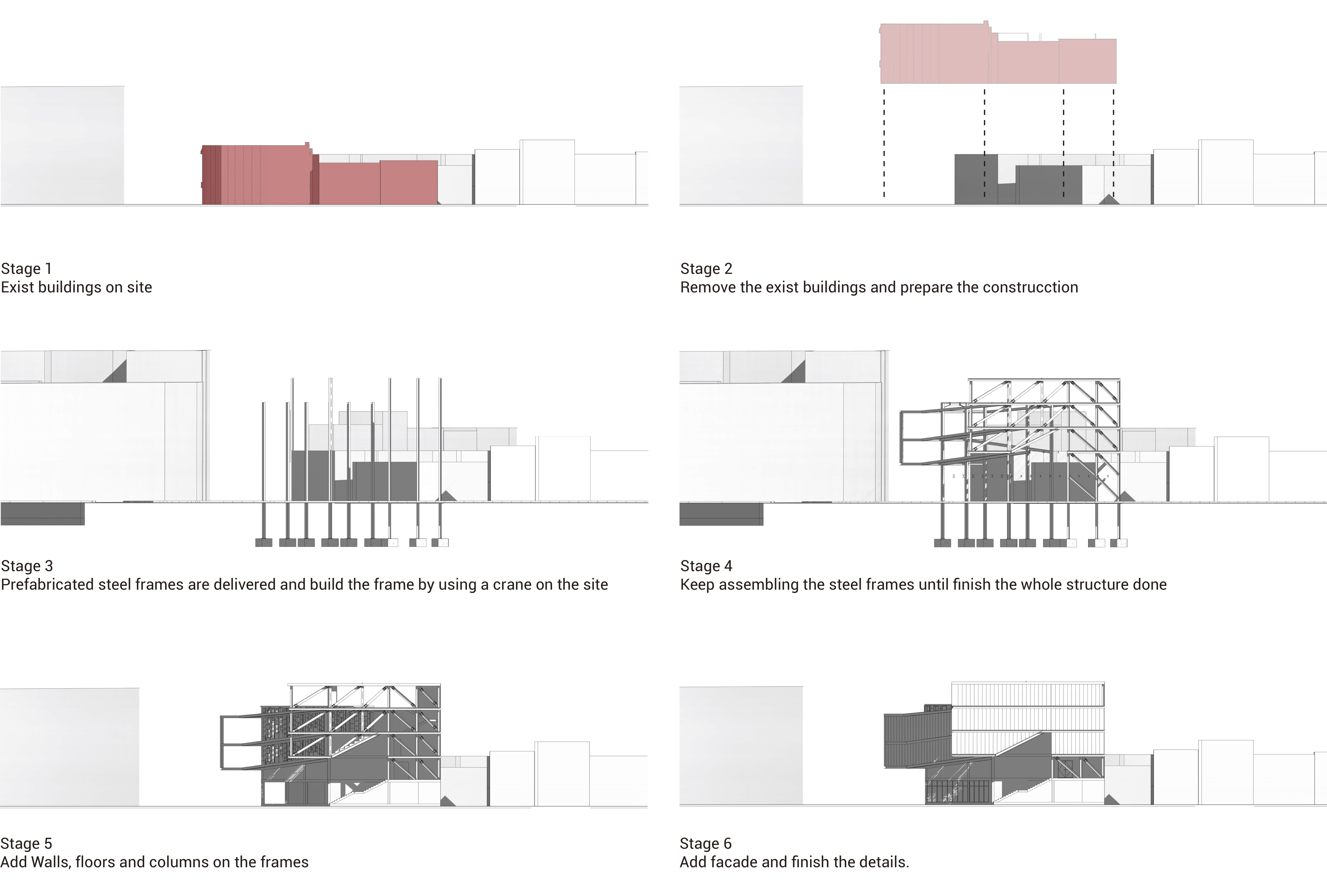

Construction Sequence
TECHNICAL DRAWINGS
The technical strategies were set according to the requirements of the library, and the structural frame of the building was also designed as different concept between divided building.
According to the program concept, shelving area is designed as using book shelves as a column of the building and it can support the building from inside. The auditorium parts has exposed frame structure and it shows more transparent atmosphere than another part.
According to the program concept, shelving area is designed as using book shelves as a column of the building and it can support the building from inside. The auditorium parts has exposed frame structure and it shows more transparent atmosphere than another part.
